The Magicball YGCX-4000 Dry ice pellet-to-slice reformer make the small particles dry ice to be compressed into small pieces of dry ice 450 times per hour can be compressed，the production of dry ice is mainly applied to low temperature preservation and transportation industries. ( Download PDF )

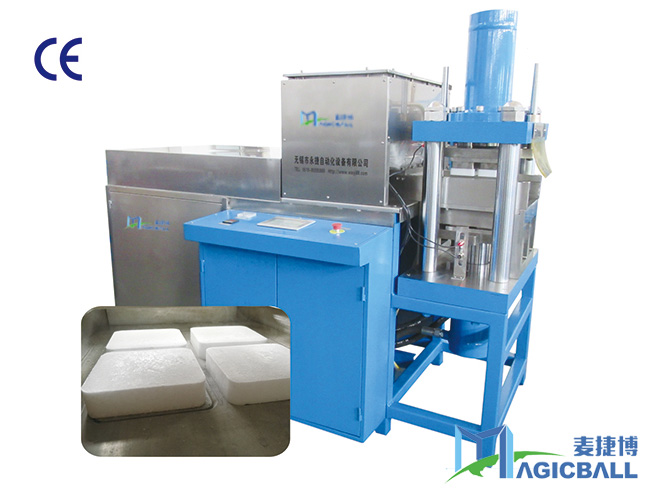

Dry Ice Reformer YGCX-4000
|
Motor Power(kw) |
11 |
Dry Ice material Size (mm) |
3*(1-10) |
|
Dry Ice Size (mm) |
9-95*95*(10-60) 6-125*105*(10-60) |
Exhaust pipe diameter (mm) |
DN70 |
|
Dry Ice Size(inch) |
9-3.8*3.8*(0.4-2.4) 6-5.0*4.2*(0.4-2.4) |
Fuel tankage (l) |
180 |
|
Min-Max (kg/h) |
900-1200/800-1100 |
Overall Dimension(cm) |
220*130*185 |
|
Raw Materials(t/m³) |
≥1.5 |
Weight(kg/lbs) |
1900/4180 |
|
CO²Transformation rate |
≥98% |
|
|
Production Video please Click Here.
Feature:
★ OMRON PLC and touch screen enable automation and digital production;
★ The stainless steel housing resists long-term corrosion of the condensate;
★ Adopt low noise digital servo control system;
★ Advanced technology makes dry ice conversion rate higher than 42%;
★ The use of cold gas from the exhaust gas to cool the oil temperature greatly reduces energy consumption;
=========================================================================================================================
Complete System Reference:

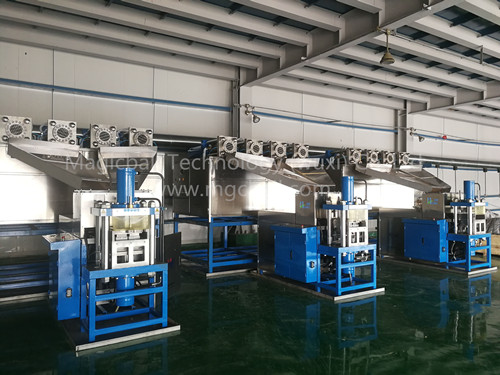

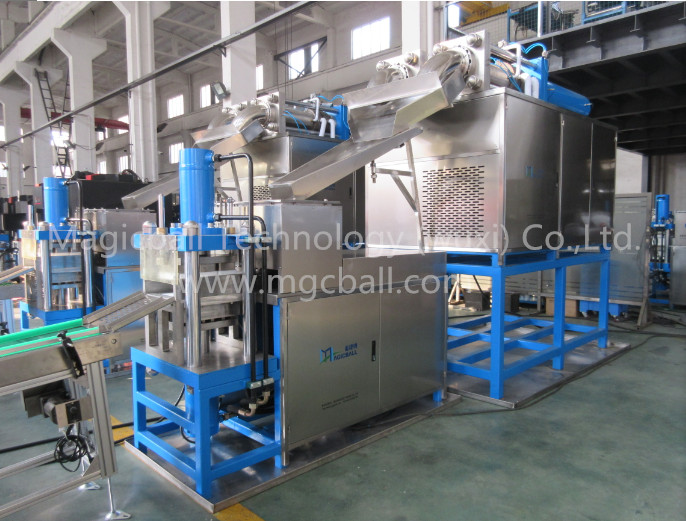

Dry ice pelletier machine + Dry ice reformer
It is a set of full-automatic production equipment from liquid CO2 to dry ice slice, with large capacity, full automation, and stable performance.
（YGBK-600-2 & YGCX-4000 )
YGBK-600-2 Dry ice pelletizer & YGCX-4000 Dry ice refomrer production video
（YGBK-300-4 & YGCX-4000 )
YGCX-4000 dry ice reformer can make dry ice size as below:
Dry Ice Size Ⅰ---250g/pcs
Length:95mm
Width:95mm
Thickness: ( 10-60 )mm
The length and width are fixed and the thickness can be adjusted.
This kind of dry ice reformer can produce 9 pieces of dry ice slice at one time.
For example:
Length:95mm, Width:95mm, Thickness:20mm. Dry ice slice about 250g/pcs
Dry Ice Size Ⅱ---500g/pcs
Length:125mm
Width:105mm
Thickness:(10-60)mm
The length and width are fixed and the thickness can be adjusted.
This kind of dry ice reformer can produce 6 pieces of dry ice slice at one time.
For example:
Length:125mm, Width:105mm, Thickness:25mm. Dry ice block slice 500g/pcs
Dry Ice Size Ⅲ---1000g/pcs
Length:125mm
Width:105mm
Thickness:(10-60)mm
The length and width are fixed and the thickness can be adjusted.
This kind of dry ice reformer can produce 6 pieces of dry ice slice at one time.
For example:
Length:125mm, Width:105mm, Thickness:50mm. Dry ice slice about 1000g/pcs
Application:
Cold chain, Transportation, Airline......
*Please Note: Dry Ice Reformer series can be customized according to your requirements.
We support our customers building up their dry ice business and are pleased to also provide our advice in regards to dry ice blasting machine and dry ice storage container.
